Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m)
Overview
The LNK-MHDE-P50 Mini HDMI Extender enables full HD 1080p@60Hz signal transmission over
CAT5e/6 UTP cable up to 50 meters, providing a point-to-point extension solution. Featuring built-in
EDID for enhanced compatibility and stable performance, this compact TX & RX pair ensures
seamless HDMI signal transmission.
Ideal for HD conferencing, video production, digital signage, and multimedia education, this extender
offers long-distance transmission, cost-efficiency, easy installation, and reliable performance—making
it a practical choice for professional AV applications.
Features
Aluminum shell, ultra compact size and Slim design, more beautiful than other designs, strong
anti-interference
Support EDID pass-through
The highest resolutions supported is up to 1080P@60Hz
Support EDID pass-through

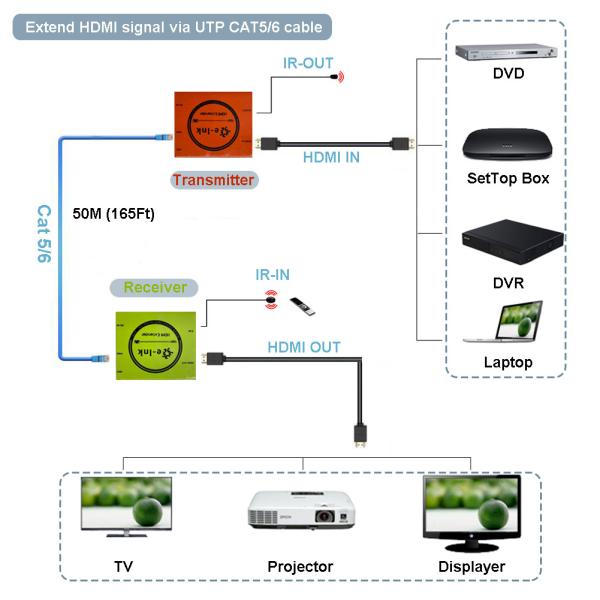

Application
Technical Indexes
| Parameter | Description |
| Video | Standards | HDMI 1.4; HDCP 1.3 |
| Maximum pixel clock | 165MHz |
| Maximum data rate | 6.75Gbps |
| Resolution | Max: 1920X1080@60Hz |
| Connector | HDMI-A |
| Impedance | 100Ω |
| IR | Interface | 3.5mm earphone seat |
| Signal direction | Unidirectional |
| Signal type | Digital |
| IR frequency | 38kHz |
| Ethernet | Interface | RJ45(568B) |
| Transmission distance | 720P, UTP CAT6---80m |
| Transmission distance | 1080P, UTP CAT6---50m |
| Other | Power supply | DC 5~12V |
| Power dissipation | MAX 3W |
| Temperature | Operating: -5℃ ~ +50℃ |
| Humidity | Operating: 5% ~ 90% |
| Dimension | 51x45x18mm |
| Housing Material | Aluminum |
| The warranty | 1 year warranty |
Ordering Information
| Model | Description of product |
| LNK-MHDE-P50 | HDMI Over CAT5/CAT6 Extender with IR - 165 ft (50m), including 1 Transmitter & 1 Receiver, used by pairs |
